Maxitrol Gas Pressure Regulators

Maxitrol gas pressure regulators are available in the following types of designs:



Straight-Thru Flow Design

Maxitrol’s original straight-thru-flow design regulators are main burner only, non-lockup type. Typical applications include residential, commercial, and industrial gas-fired appliances and equipment used on low/medium pressure gas supply.



Poppet Design

The poppet model RV Series is designed primarily for main burner and pilot load applications. Typical applications include residential and commercial cooking appliances, hearth products, pilot lines, and residential water heaters. They are rated for up to 1/2 psi (35 mbar).



Lever Acting Design

325 Series regulators are for 2 psi and 5 psi piping systems. Models available for appliance main burner or pilot applications and as line pressure regulators.



Balanced Valve Design

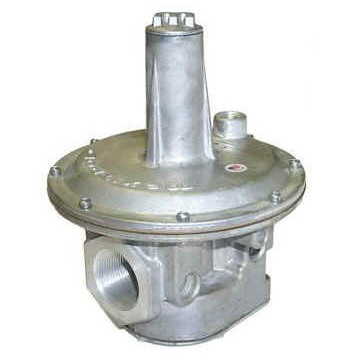

R & RS regulators are for main burner and pilot load applications. They are ideal for use in industrial applications such as infrared heaters and on pilot lines for large process heaters and bakers. They may also be used in residential applications as appliance regulators. 210 Series balanced valve design is a lockup-type regulator. Its intended applications include gas-fired boilers, steam generators, industrial furnaces, and ovens. Remote sensing option is available on 210D, E, and G models (consult Maxitrol).



Zero Governors

Zero Governor regulators are used for flow control of burners, nozzle mixers, mixing tees, and proportional pre-mixers.



Pilot Loaded

The 220 Series, utilizing a servo-operated design rather than the more conventional spring-loaded design, delivers higher outlet pressure than spring loaded models.



To request more information or to order Maxitrol gas pressure regulators, please call the D. B. Johnsen Company Parts Department between 8:00 AM - 4:30 PM EST at 1-800-442-1242 or click here to email us.
